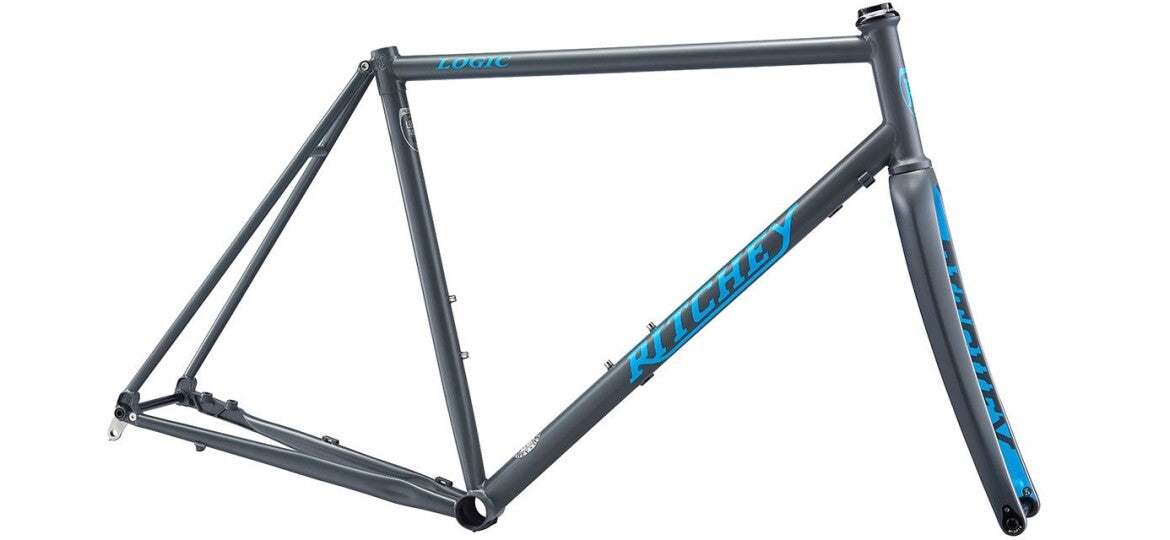

Ritchey Road Logic Disc Frameset Grey/Blue Logo

The new ROAD LOGIC DISC benefits from more than 40 years of experience in frame building, innovation and research and embodies all the accumulated knowledge, lots of riding fun and countless kilometers in the saddle.

A modern and timeless classic. The elegance of the classic line combines with up-to-date technology and proven, high-quality materials. Fast and agile for the racetrack, yet comfortable enough for long days on the bike.

Known for its precision and perfection, Ritchey once again delivers some subtle improvements. A new WCS Road Disc fork was developed specifically for the new ROAD LOGIC DISC. The frame offers flat mount disc brake compatibility and features 12 mm thru-axles front and rear. The switch to disc brakes has opened up tire clearance to 32 mm.

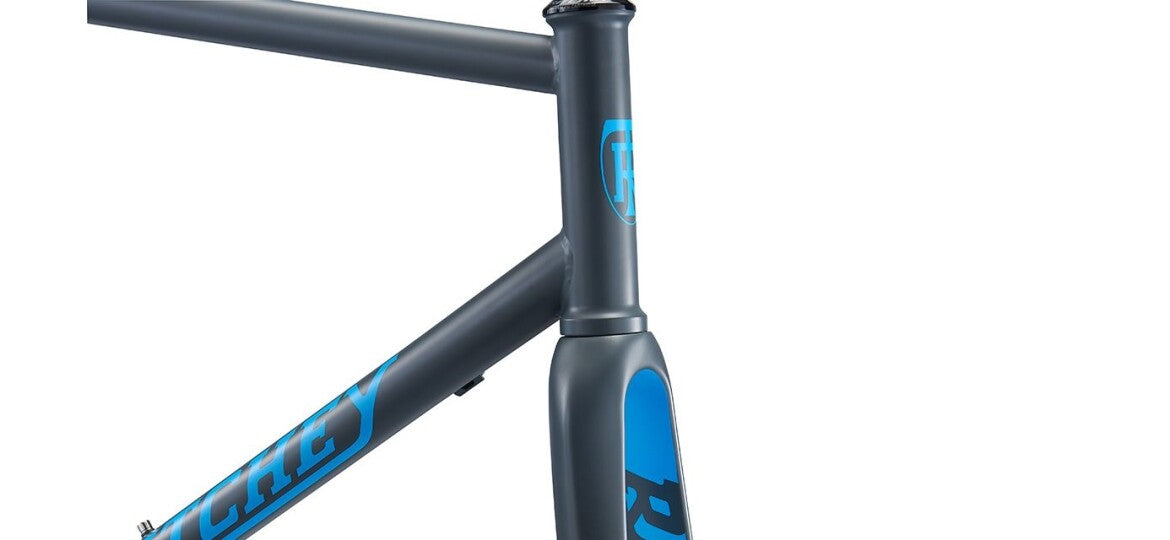

The highly regarded, exquisite features remain unchanged. The frame consists of heat-treated and triple-butted Ritchey Logic tubing with extremely short butted sections, specially optimized for TIG welding. This reduces weight and improves ride comfort. The forged, ultra-narrow head tube accommodates standard press-fit bearings and saves 80 grams compared to a standard head tube.

1x frame Ritchey Road Logic Disc

1x fork Ritchey WCS Road Disc Carbon NEW

1x Ritchey WCS Drop-In headset

Area of ​​use: Road

Technical data:
Frame: heat-treated, triple-butted Ritchey Logic II CroMoly steel (1840 g / 55 cm)
Fork: Ritchey full carbon fork (440 g)

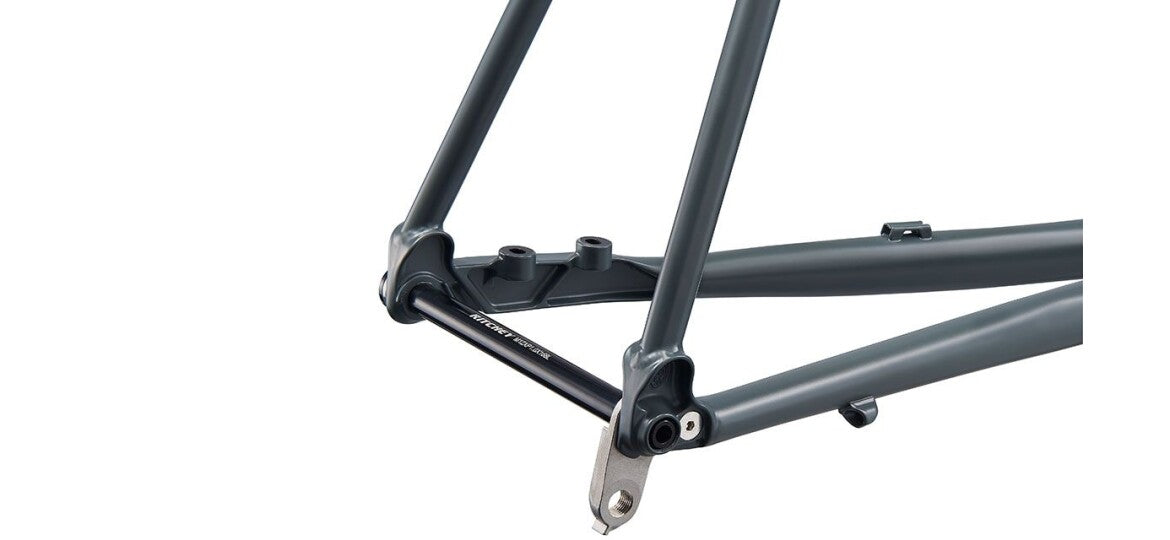

Axle standard: 12 mm thru axles front and rear
Front derailleur: Mount: High Clamp (clamp 28.6 mm)
Brake: Flatmount
Seat post: (ø): 27.2 mm
Headset: WCS drop-in 1-1/8"
Tires: 700x30c tire clearance

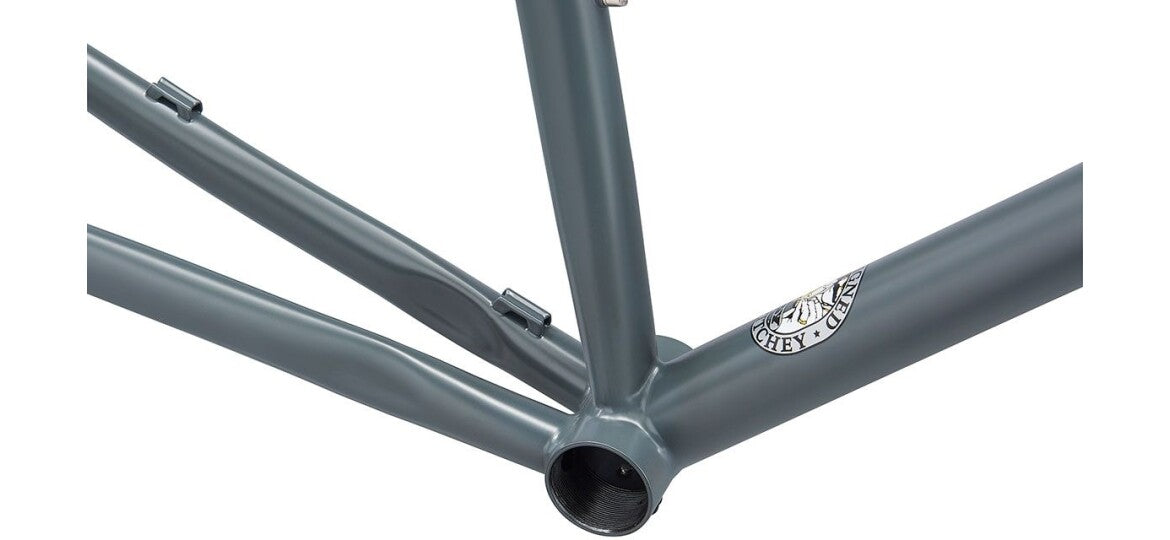

Bottom bracket: 68 mm BSA

Frame size: 49 cm

The new Ritchey Road Logic Disc delivers the same amazing ride experience that the bike is known for but adds the stopping power and control of disc brakes. Steeped with more than 40 years of frame-building heritage, innovation, exploration, and lots of riding, the classic lines of this beautiful steel frame and carbon fiber fork unite with modern building techniques and proven materials to deliver a contemporary bicycle that's wonderfully comfortable for long days in the saddle, nimble and stiff enough to win the sprint for that sign, and adequately adaptable to endure roads that might lack proper pavement.

The frame is built with a heat-treated and triple-butted proprietary Ritchey Logic tube set and features a straight headtube and aggressively short-butted sections optimized for TIG welding that save weight and improve ride quality. The tried and true specs on the frame remain unchanged but now sport a redesigned chainstay for flat-mount disc brake compatibility, thru-axles in the front and rear and a new fork designed specifically for the Road Logic Disc.

Build your dream bike based on the RITCHEY ROAD LOGIC DISC frameset!
