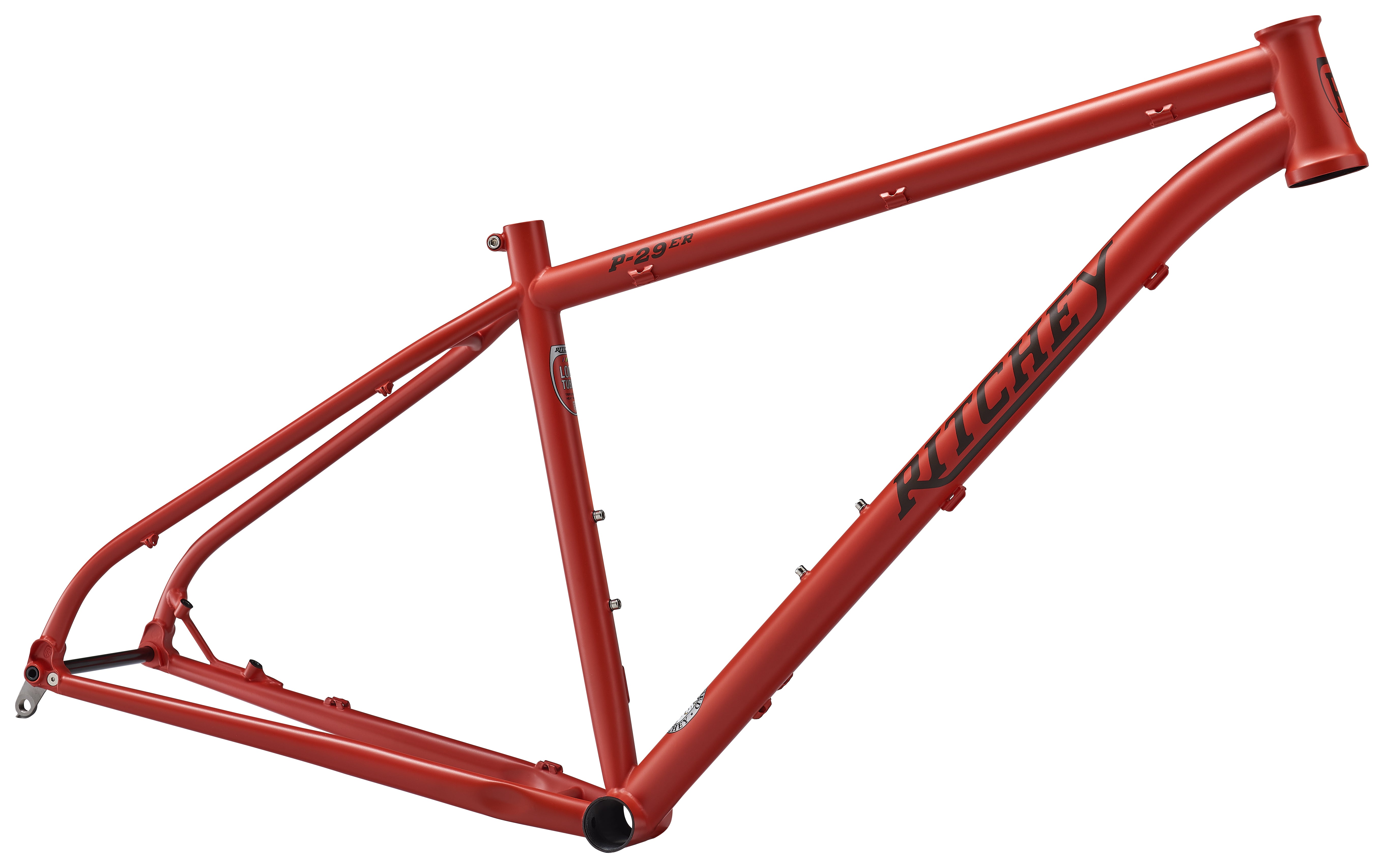

Ritchey P-29er MTB Frame Steel Dirt in Blood 2024

NEW! Special price!
The P-29er is back! The newly arrived P-29er is a modern hardtail XC MTB frame that builds on the long history of the P-Series and is perfect for tight, fast trails.


Frame: heat-treated, triple-butted Ritchey Logic CroMoly steel tubes, TIG-welded, ED-coated, axle standard: 148 x 12 mm
without fork, optimized for forks with 100mm travel or rigid forks with an installation height of 483mm
replaceable stainless steel derailleur hanger
Disc brake mount: Postmount 160mm (max. 180mm - adapter sold separately)
Seatpost: 27.2 mm, retractable seatpost
WCS headset
Headset upper bearing: 41.8mm 41.8mm OD / IS42/28.6 (SHIS)
Headset lower bearing: 51.9mm OD / IS52/40 (SHIS)
Wheel size: 29"
Tires: 29x2.25 (2.3 max)
Bottom bracket: 73 mm (English thread)
For cranks with a chainline of 52mm, single chainring (max. 38T)
Weight: 2.315g (M/17") Manufacturer information

Tom Ritchey loves riding mountain bikes, and he created the Ritchey P-29er so you could share the same kind of experiences he's been enjoying on trails for most of his life. Designed for ripping tight, twisty, and technical cross-country singletrack, the P-29er is the latest manifestation of Ritchey's deep heritage of mountain biking
history. This sublime frameset represents everything Tom loves about mountain biking – roots, rocks, fun, and endless adventurous experiences deep in the woods.
The frame of the P-29er is built with Ritchey's proprietary triple-butted Logic steel tubing. That combines with its modern XC geometry to deliver a breathtakingly balanced ride – beautifully mixing a snappy and responsive soul with a comfortable and predictable personality. The P-29er is the ultimate cross-country mountain bike.
With its pedigree firmly rooted in the decades-deep lineage of its P-series predecessors that helped define the sport of mountain biking, this latest version of the P-29er is very much a modern machine with features demanded by today's XC riders. It boasts BOOST spacing along with stealthy dropper post routing and an ultralight forged tapered headtube. If fits tires up to 2.3” and is built around
a 100mm travel fork. All of this comes together to enshrine the P-29er as a monument to the spirit of endless singletrack adventure.

SPECIFICATIONS

• Sizes: S (15”), M (17”), L (19”), XL (21”)
• Material: heat-treated, triple-butted Ritchey Logic steel tubing

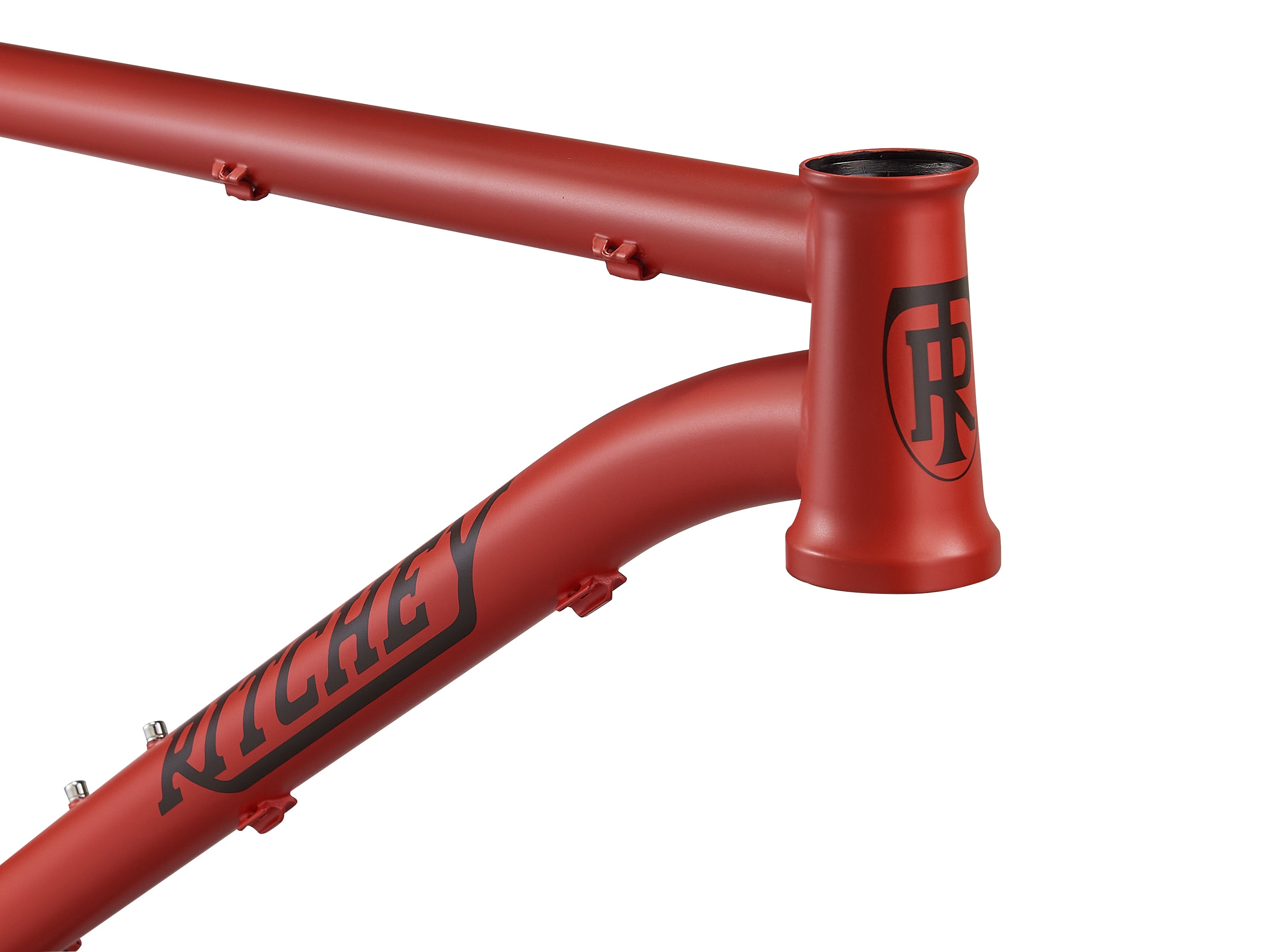

• Ultra-light forged and machined tapered headtube
• Optimized for 100mm (BOOST) suspension travel fork or 500mm axle-crown rigid fork

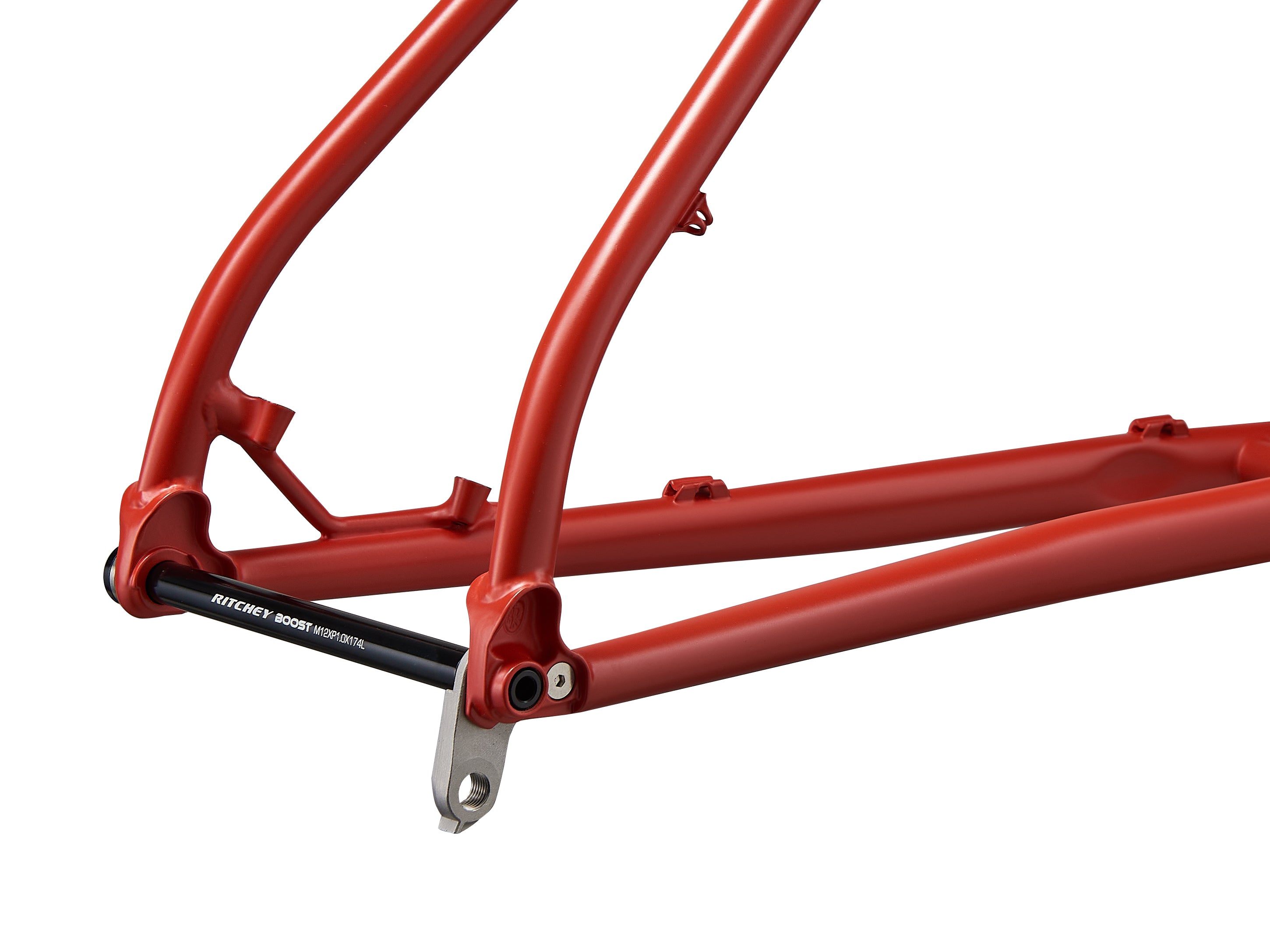

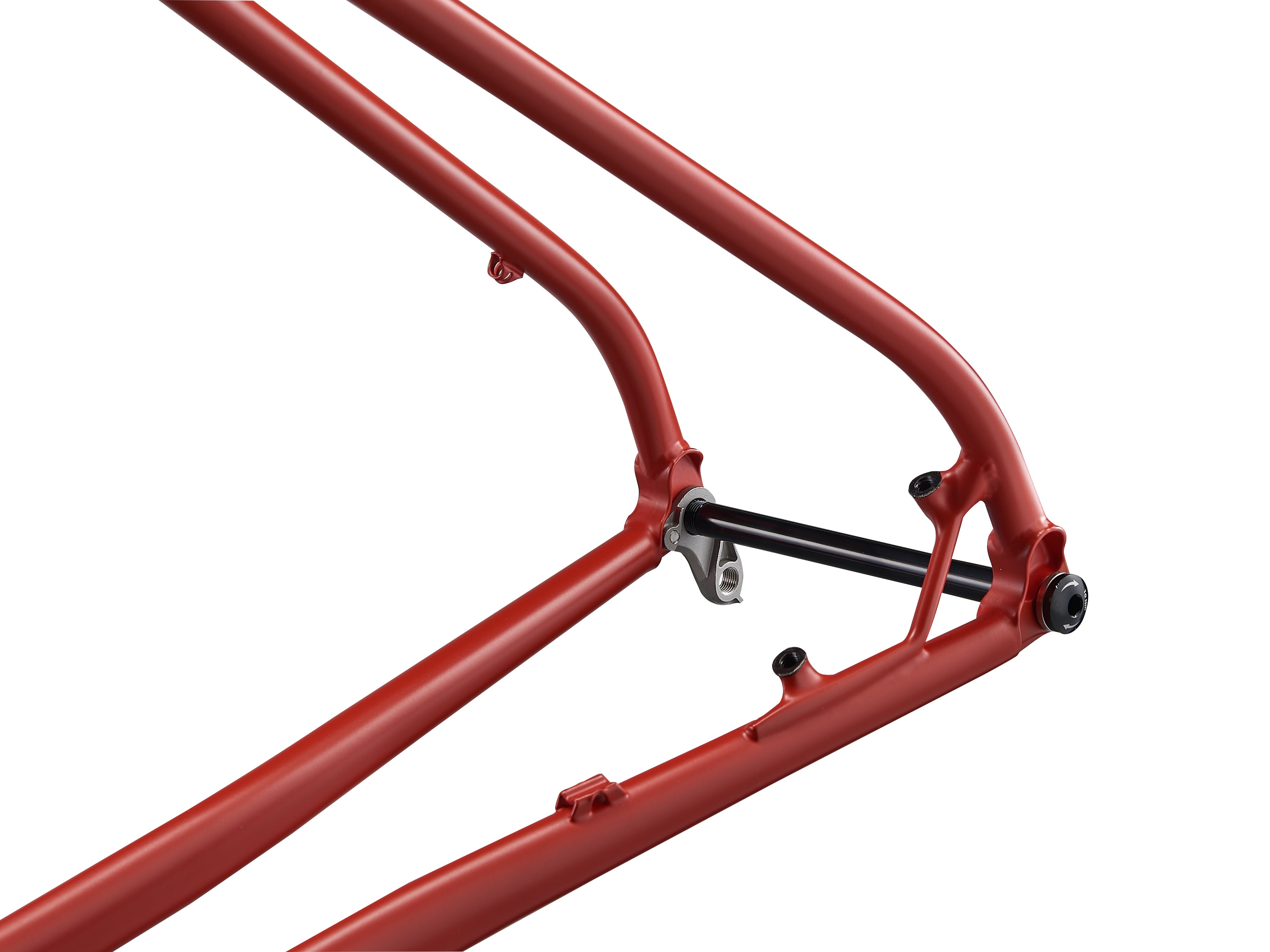

• BOOST 148 x 12mm rear end with replaceable stainless steel derailleur hanger
• Post-mount rear brake: 160mm (180mm max - adapters available separately)
• Headset: WCS headset included (upper IS42/28.6 | lower IS52/40)
• Recommended tire size: 29x2.25 (2.3 max) (depending on tire/rim manufacturer)
• Bottle cage mounts: Two (one on downtube
and one on seat tube) *Note: one on size S
• Designed for 1X chainrings

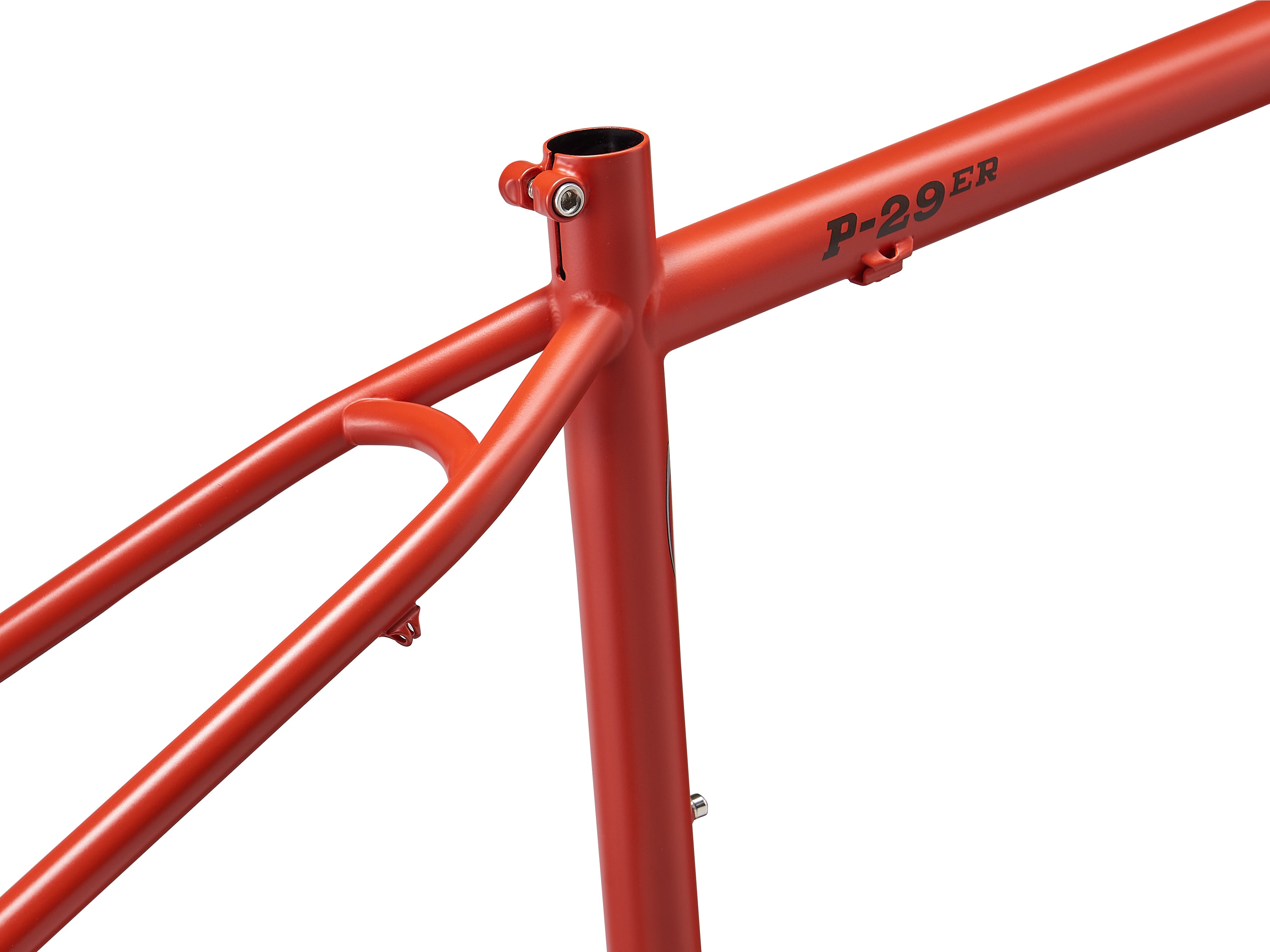

• 27.2mm seat tube with stealth dropper routing
• Front derailleur clamp: 34.9mm

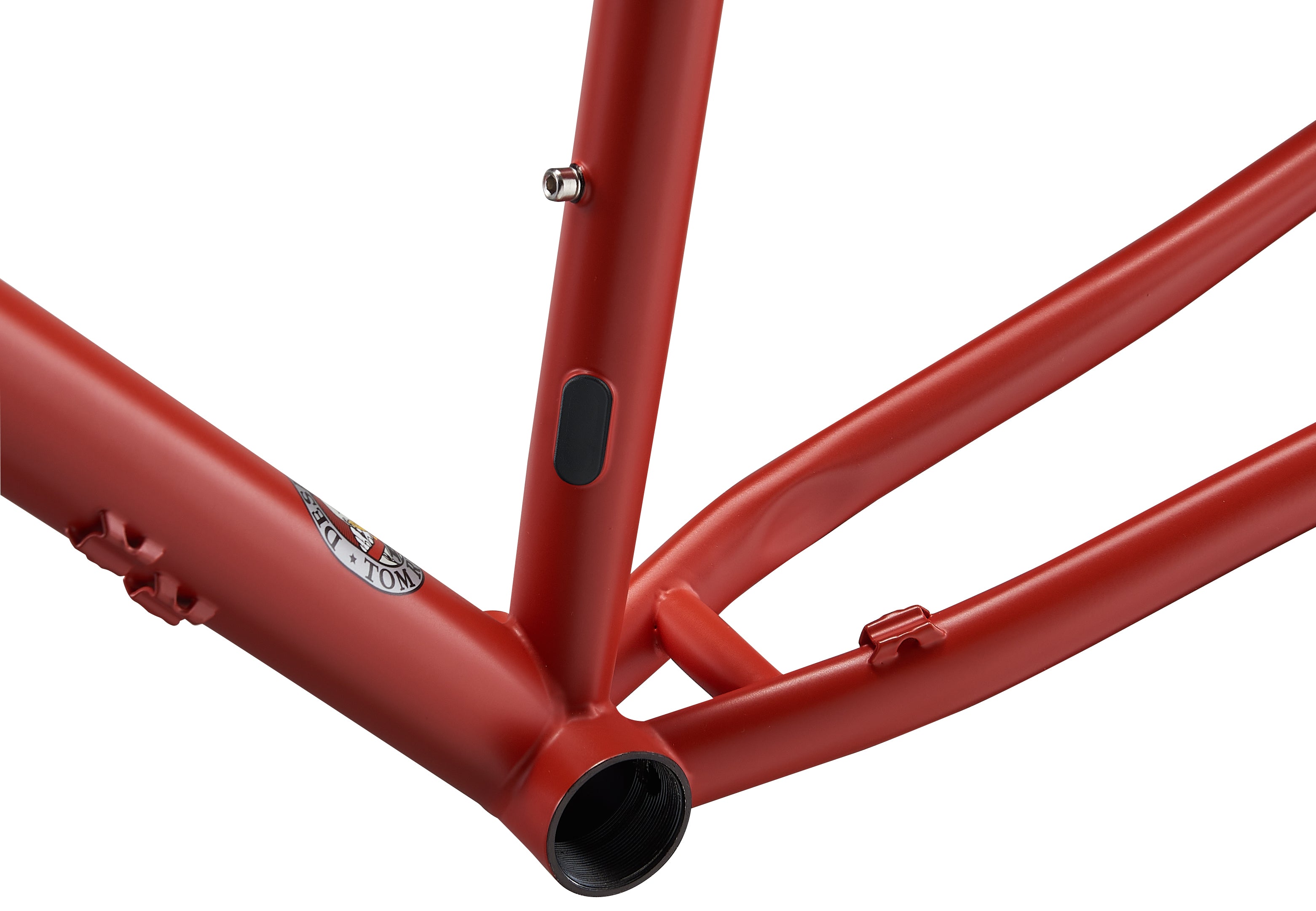

• Bottom Bracket: 73mm English
• Weight: 2,380 g/5.25 lbs (M/17”)
• Color: Dirt in Blood
