Ritchey Garden City frameset Fixie Single Speed limited edition with 100 frames
Ritchey Garden City frameset Fixie Single Speed limited edition with 100 frames
S
Kantstraße 75
Kantstraße 75
10627 Berlin
Germany
Choose options
They say less is more. In the case of the Garden City, this is especially true. It's also the joy of cycling's freedom, distilled into a single gear. Don't let its simplicity fool you, though; there's more to the Garden City than meets the eye. Aspiring velodrome champion? Yes. Urban commuter? Absolutely. Off-season training bike? It worked for Coppi!
A modern take on the versatile fixie, the Garden City is as much a track bike as anything you want it to be. The supple yet responsive triple-butted frame easily accommodates a 28c tire. With holes for bottle cages and brakes, it's ready for more than just a cross-town ride. With no restrictions on how you build or ride it, the Garden City is proof that less really is more.

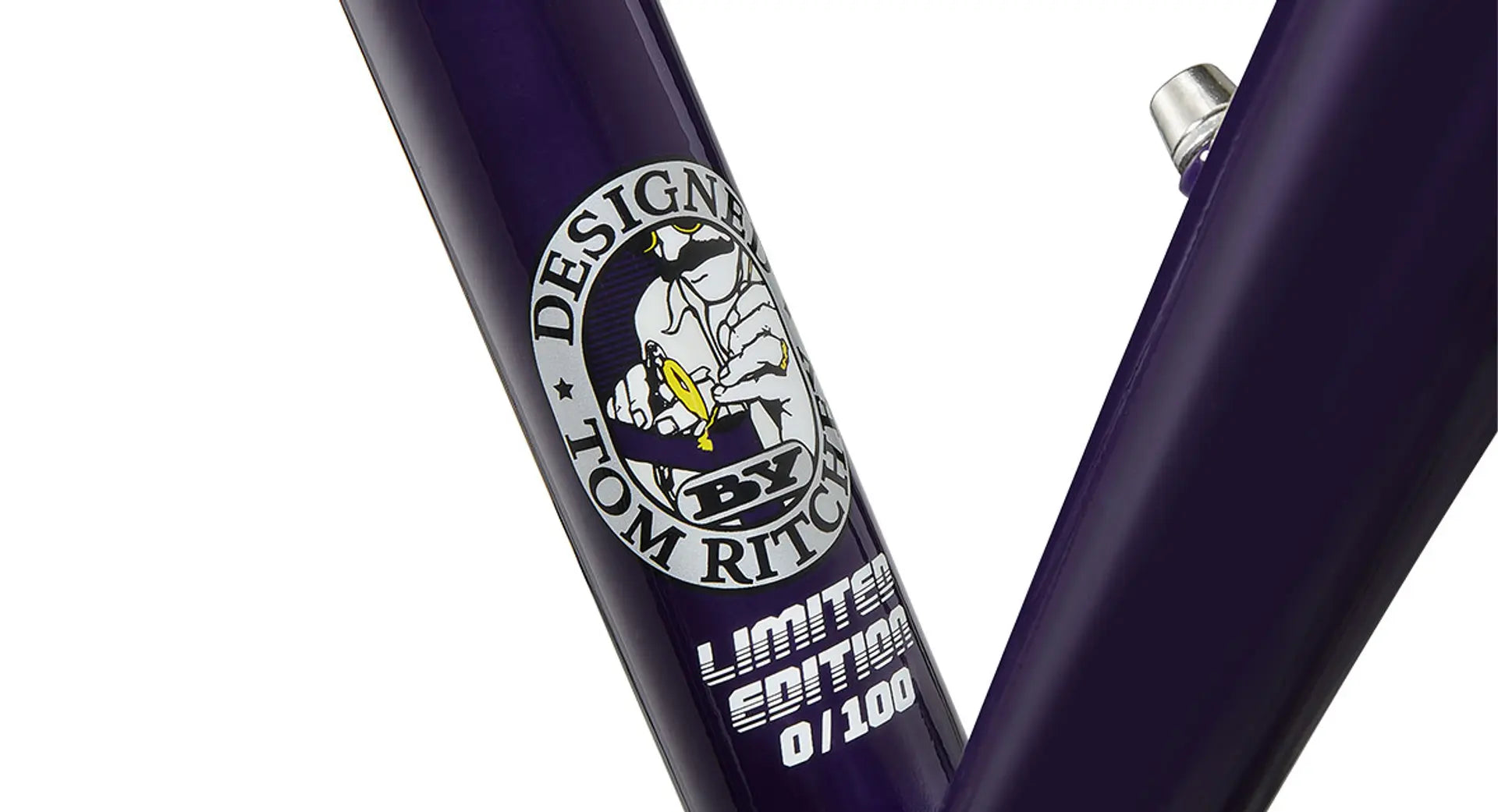

The Garden City is a limited edition of 100 uniquely numbered frames.
Material: heat-treated, triple-butted Ritchey Logic steel tube – TIG welded
Ultralight, forged and machined straight 1-1/8" head tube
Electrophoretic coating (EPD Coat) treated for corrosion resistance
27.2 mm seat tube with integrated seat clamp mechanism (maximum torque: 6 Nm)

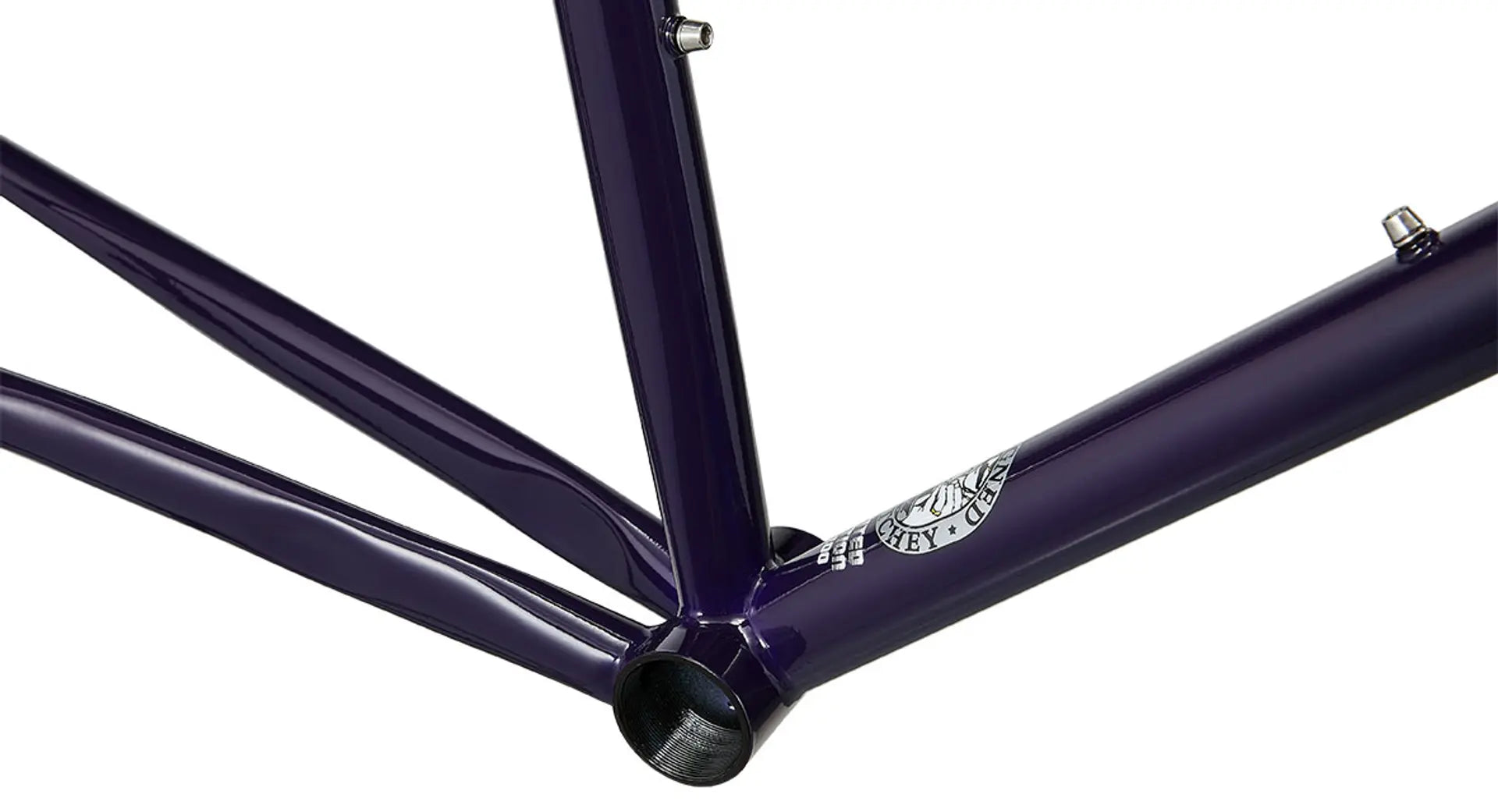

Bottom bracket: 68 mm – English thread
Crankset maximum wheel diameter: 55 teeth
Chainline: 49 mm
Bottle cage mounting: 2

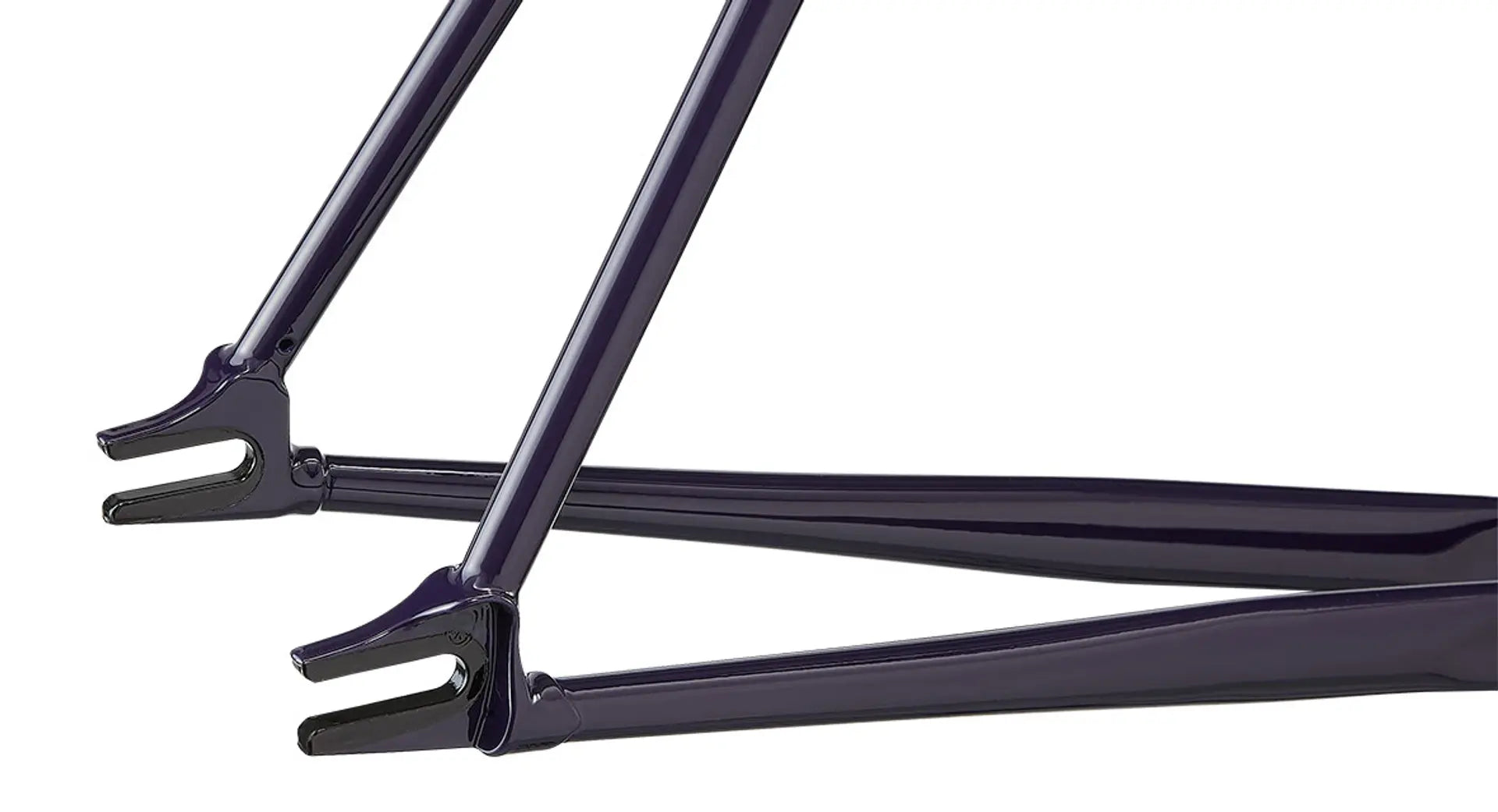

Dropouts: horizontal, 120 mm bolt-on
WCS headset bearing included (upper IS42/28.6 – 16 mm stack height | lower IS42/30)
Fork
Ritchey Comp Carbon Road fork included, 1-1/8" straight head tube
Head tube length: 300 mm
Axle crown: 368 mm
Fork rake/offset: 43 mm
Maximum spacer height under the stem: 30 mm
Standard quick release
Tire compatibility
Wheel and tire compatibility: 700 x 28c tire approval (depending on tire and rim manufacturer)
Frame spacing: 38 mm
Fork spacing: 32 mm
Details
Sizes: S/M/L/XL
Frame weight: 1,950 g (size L)
Fork weight: 525 g (uncut head tube)
Color: Midnight Violet and Moon Yellow
