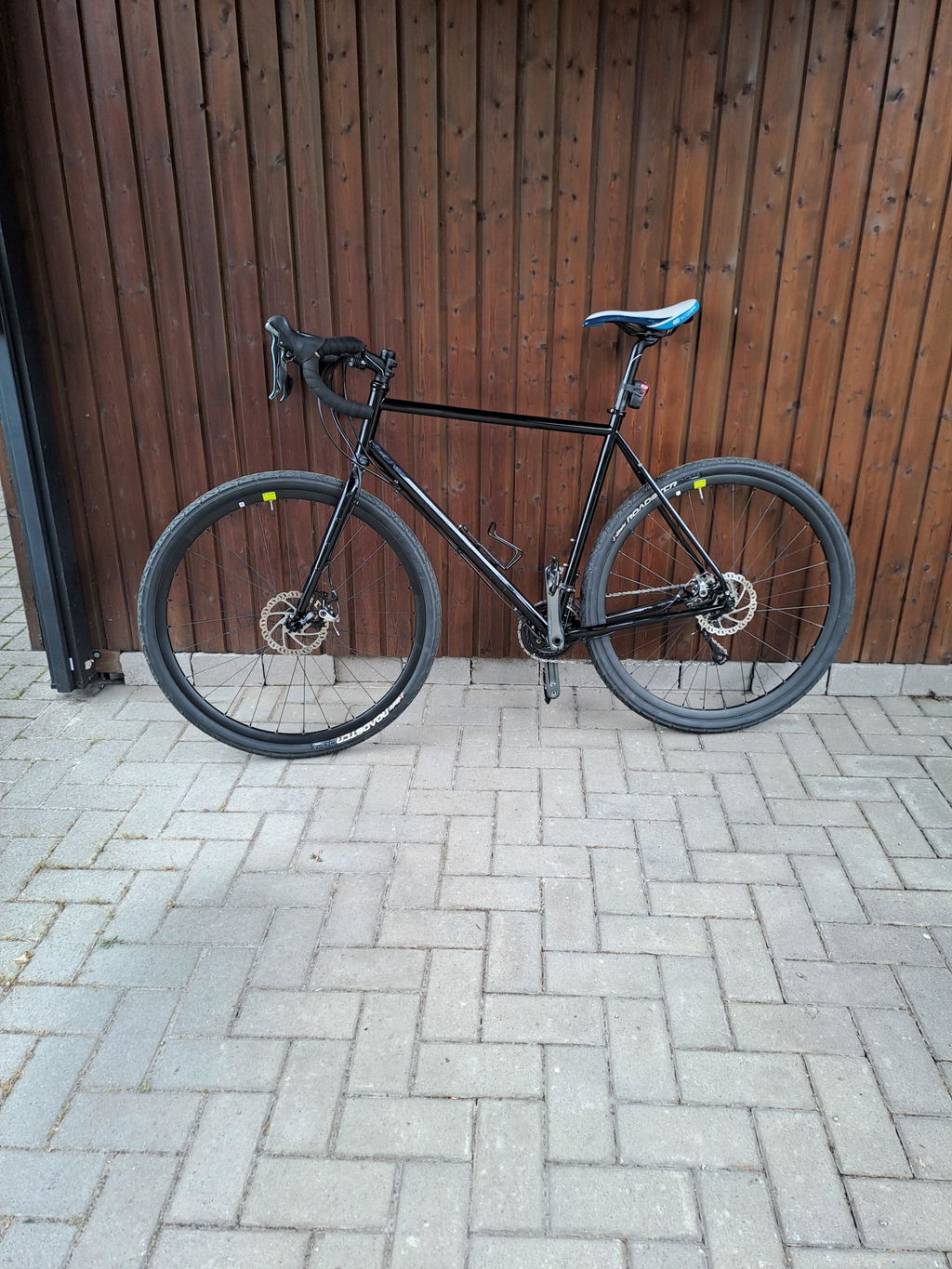

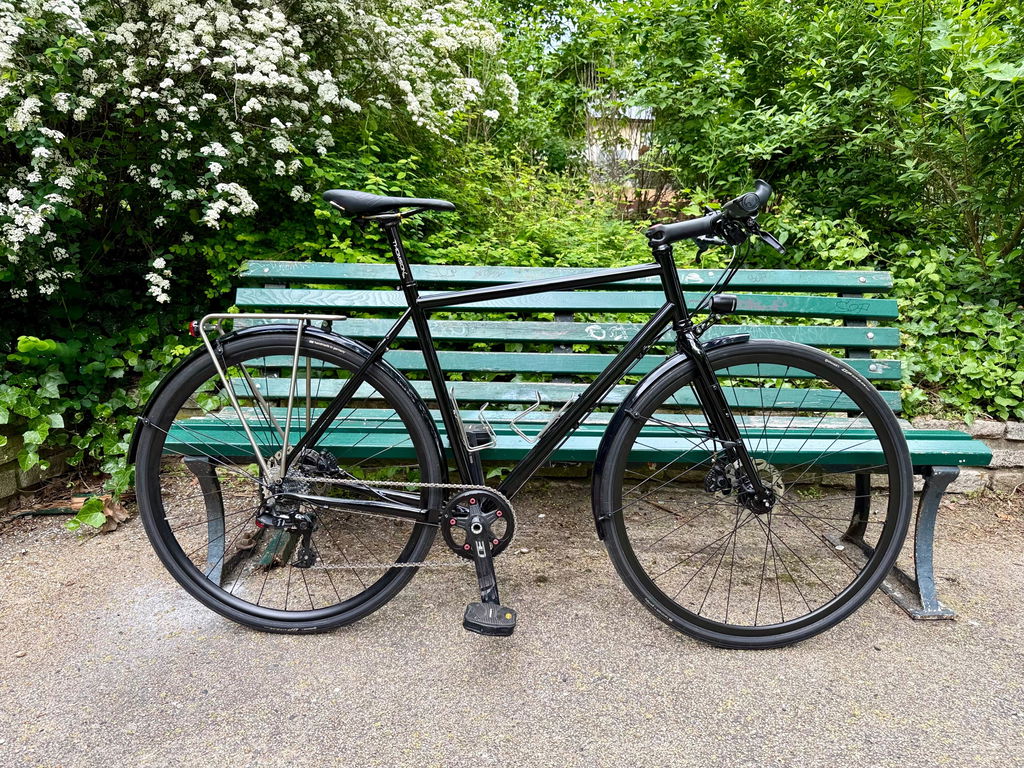

Just Bikes JB02 Gravel frameset steel frame steel fork PM QR

Frame: Just Bikes 4130 CrMoly steel; rear: 9x135 mm quick release
Fork Just Bikes Adventure Disc Cross; Front: 9x100 mm quick release
Brake Brake mount: Postmount; Brake disc size (max.): 160 mm (front), 160 mm (rear)
Seat post Ø 27.2 mm
Headset 1 1/8”, semi-integrated
Wheel size 27.5 - 28 inches
Bottom bracket BSA; shell width: 68 mm
Weight approx. 3550 grams (frame size 55, including fork and headset)

Made of steel - strong values ​​in terms of comfort, durability, safety and sustainability

We value and prefer CrMoly steel as a frame material due to its proven properties:
- has a high elasticity, which offers a high driving comfort, even without extra specific suspension elements
- has very good resilience, is very tough and absorbs external influences and forces more flexibly than other materials
- durable, ideal for building timeless frames
- robust and with high stability, quite insensitive to falls
- natural damping properties
- great durability, has high tensile strength and good elongation
- clean lines, slim tubes, unmistakable look with character
- durable, easy to repair and easy to recycle

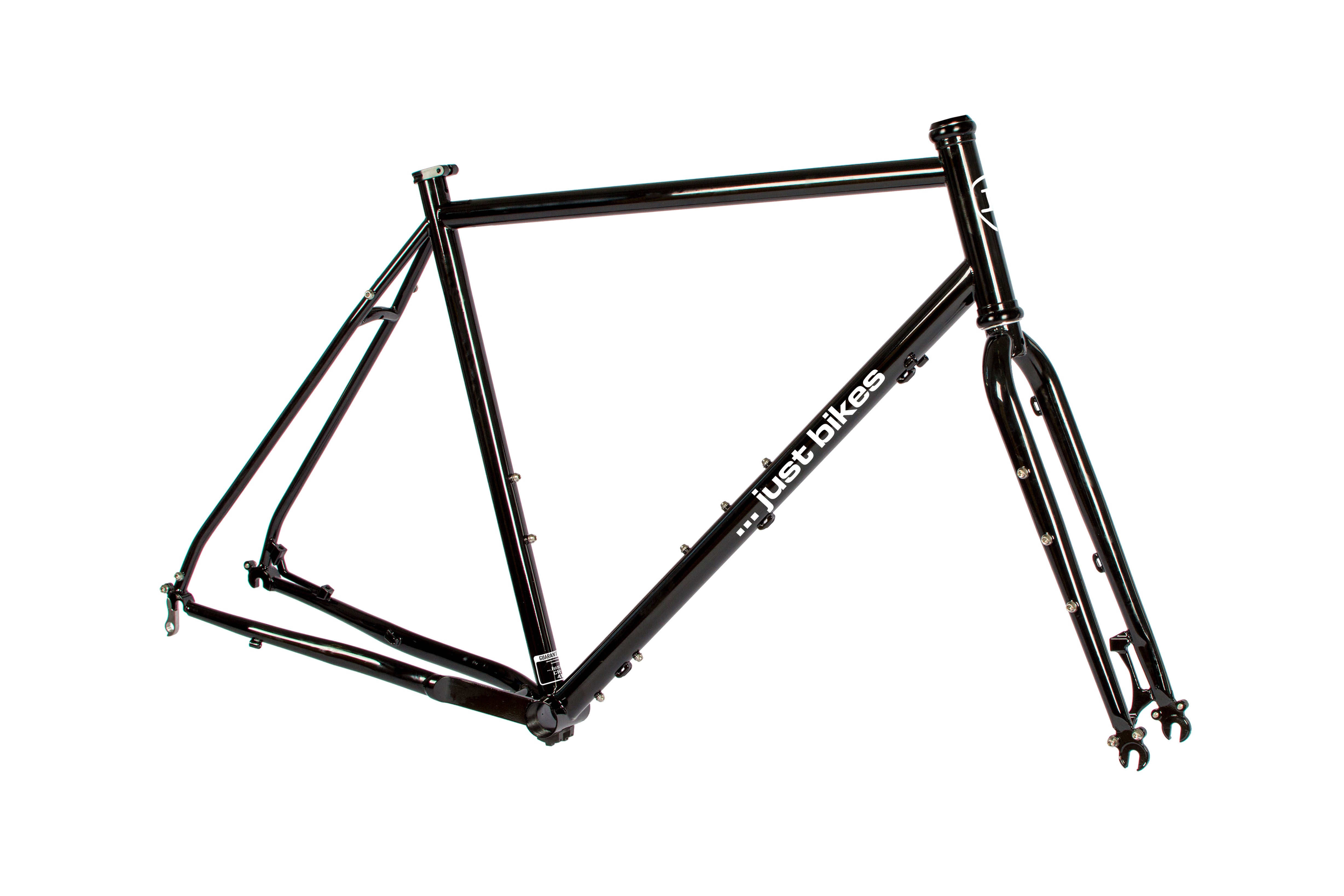

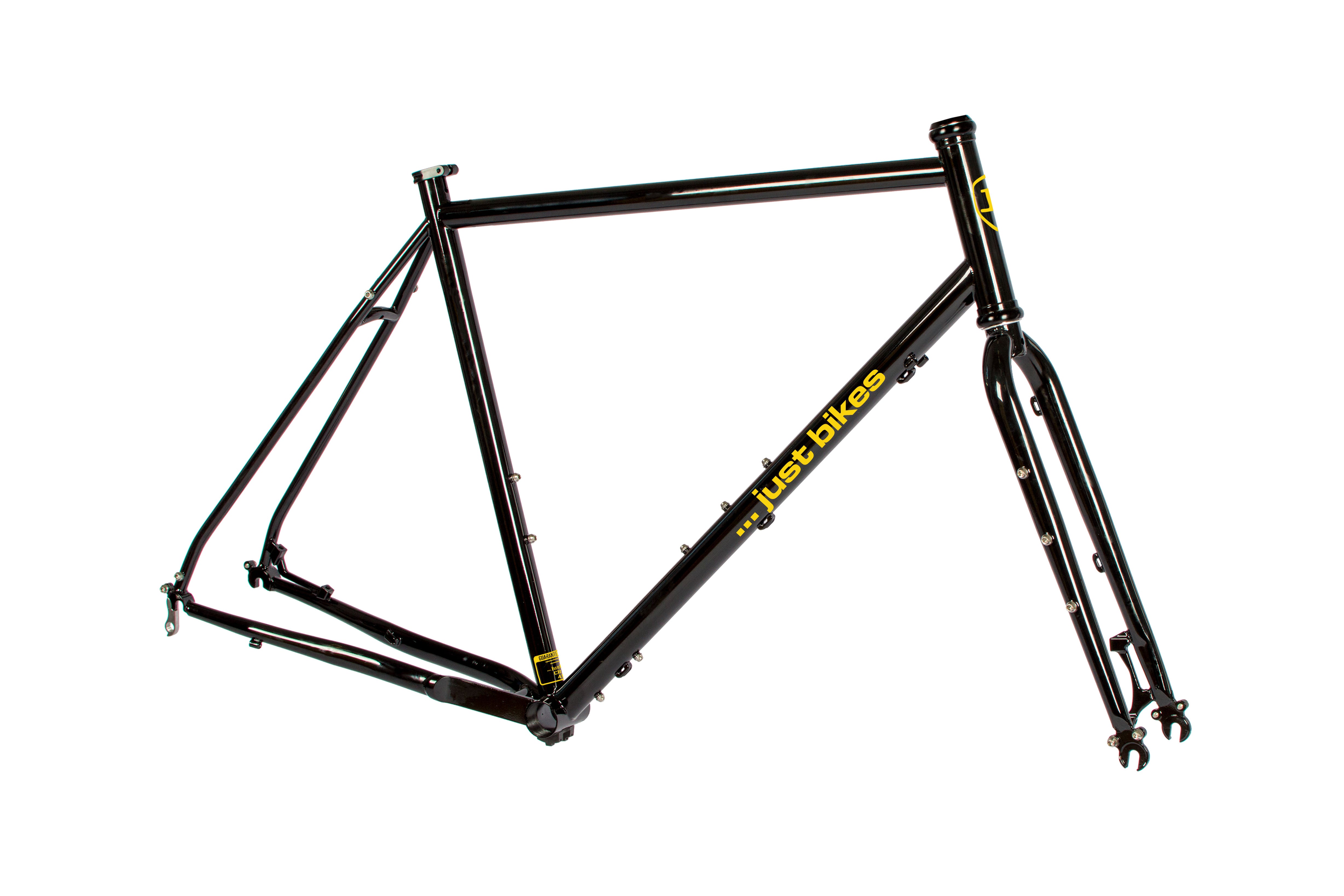

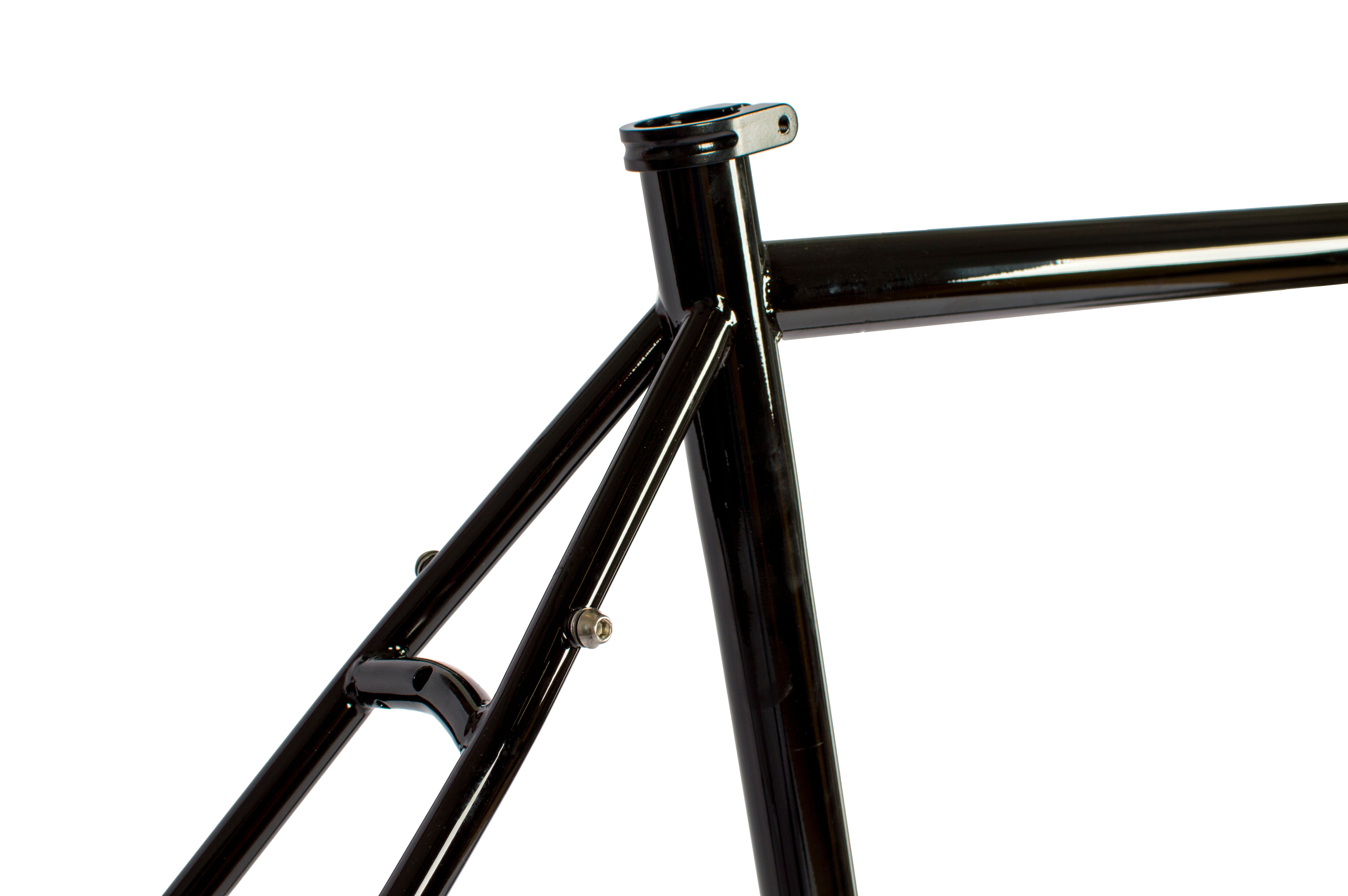

Just Bikes JB02 frame
- lightweight, double-butted tubes made of chrome-molybdenum steel (25CrMo4)
- Anti-rust ED-Black coating inside and out
- powder-coated

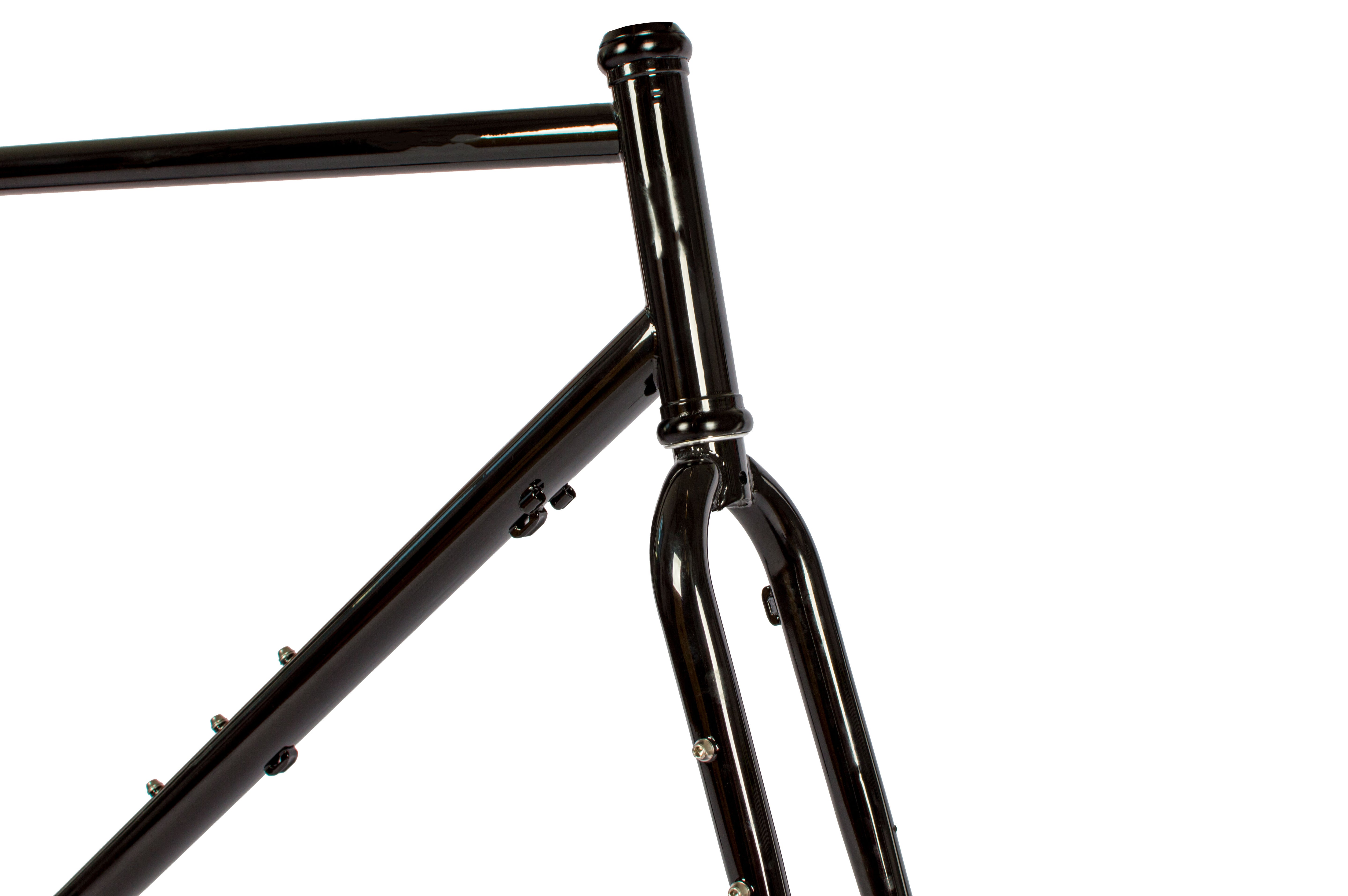

- 1⅛ head tube
- Installation dimensions 9x135 mm

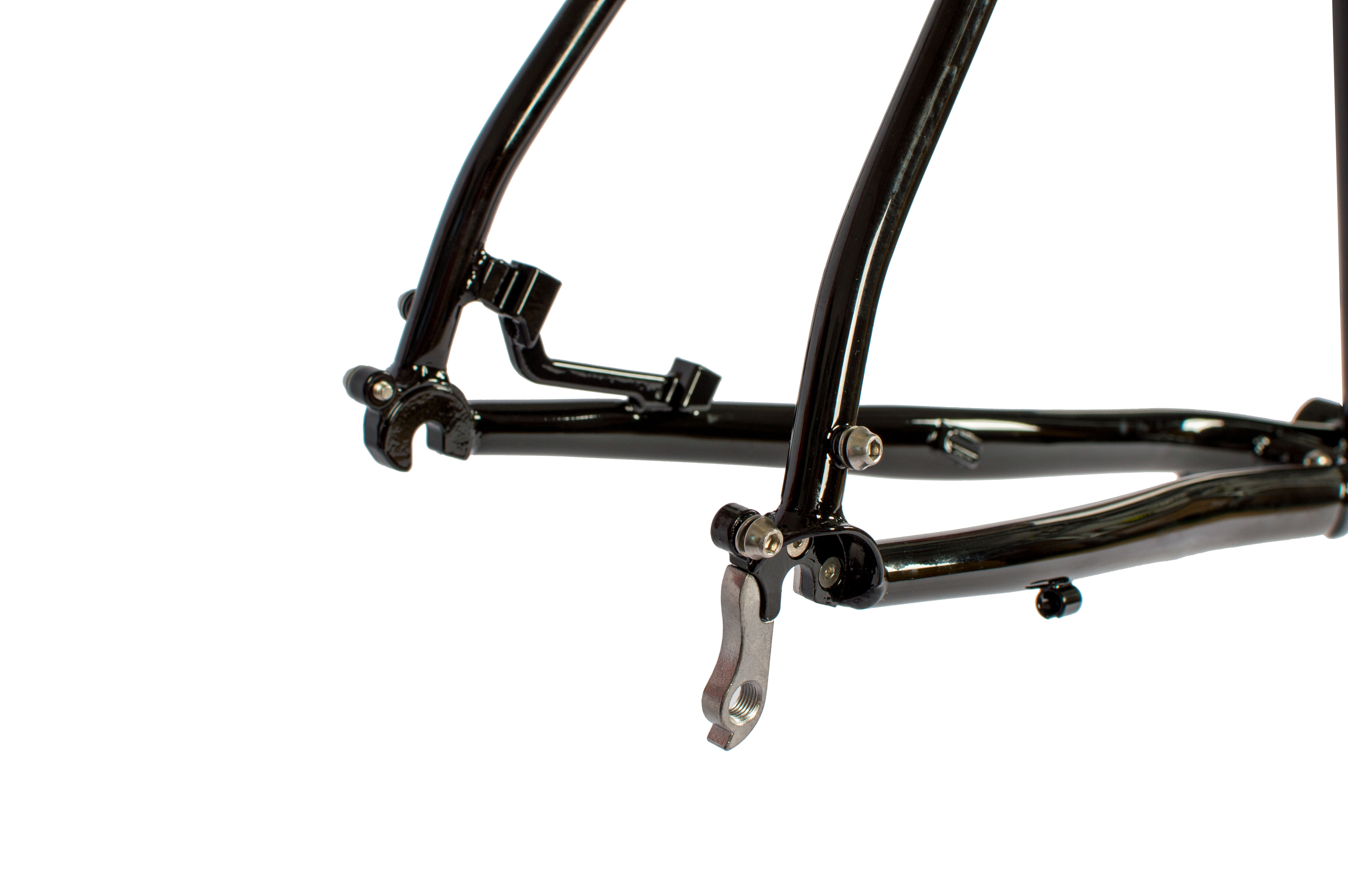

- Dropouts with replaceable steel derailleur hanger
- Headset: Semi-integrated with industrial bearing
- Postmount disc brake mount for 160 mm brake discs
- Crank/chainring compatibility: for single or double chainrings
- equipped with luggage rack and mudguard mounts
- 2 bottle holders
- Tire clearance up to 50 mm

Colors:
- glossy black


Frame sizes: 530 mm, 550 mm, 570 mm

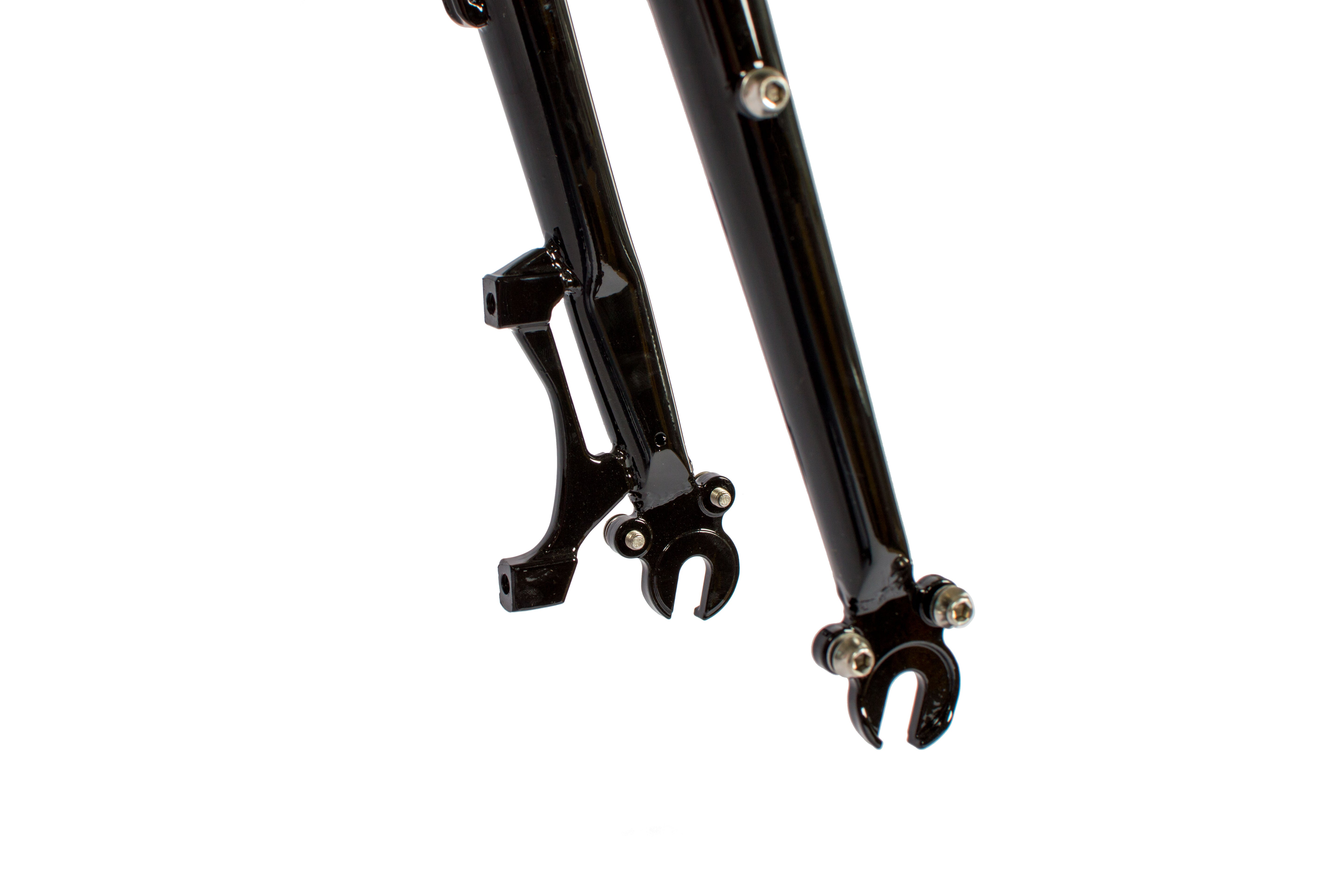

Just Bikes JB02 Adventure CrMo steel fork, multi-purpose rack and mudguard mounts
- 1⅛ steel steerer tube
- 3 eyelets per fork side for attaching mudguards, additional cup holders, lowrider or luggage
- Installation dimension 100 mm quick release
- Anti-rust ED-Black coating inside and out

Scope of delivery

Just Bikes JB02 Gravel Adventure Disc frame
Fork JB02 Steel Disc
Headset (including star nut and ahead cap)

New with warranty

Shipping within Germany 24,90 €
