28 inch men's e-bike trekking bike NOVA BOSCH PERFORMANCE LINE CX Gen4 625Wh 12s Shimano DEORE
28 inch men's e-bike trekking bike NOVA BOSCH PERFORMANCE LINE CX Gen4 625Wh 12s Shimano DEORE
52cm
Kantstraße 75
Kantstraße 75
10627 Berlin
Germany
Choose options
28 INCH MEN'S TREKKING BIKE E-BIKE NOVA BOSCH PERFORMANCE LINE CX POWERTUBE 625Wh
The 28-inch Bosch NOVA men's e-bike with the Performance Line CX Gen4 and a 625 Wh battery capacity offers a powerful and reliable cycling experience. The bike is equipped with high-quality components that ensure a smooth and comfortable riding experience.
The e-bike is powered by the Bosch Performance Line CX Gen4, a powerful and reliable motor that offers a natural riding feel and strong assistance. With a capacity of 625 Wh, the battery offers a long range, allowing you to cover longer distances without any problems.

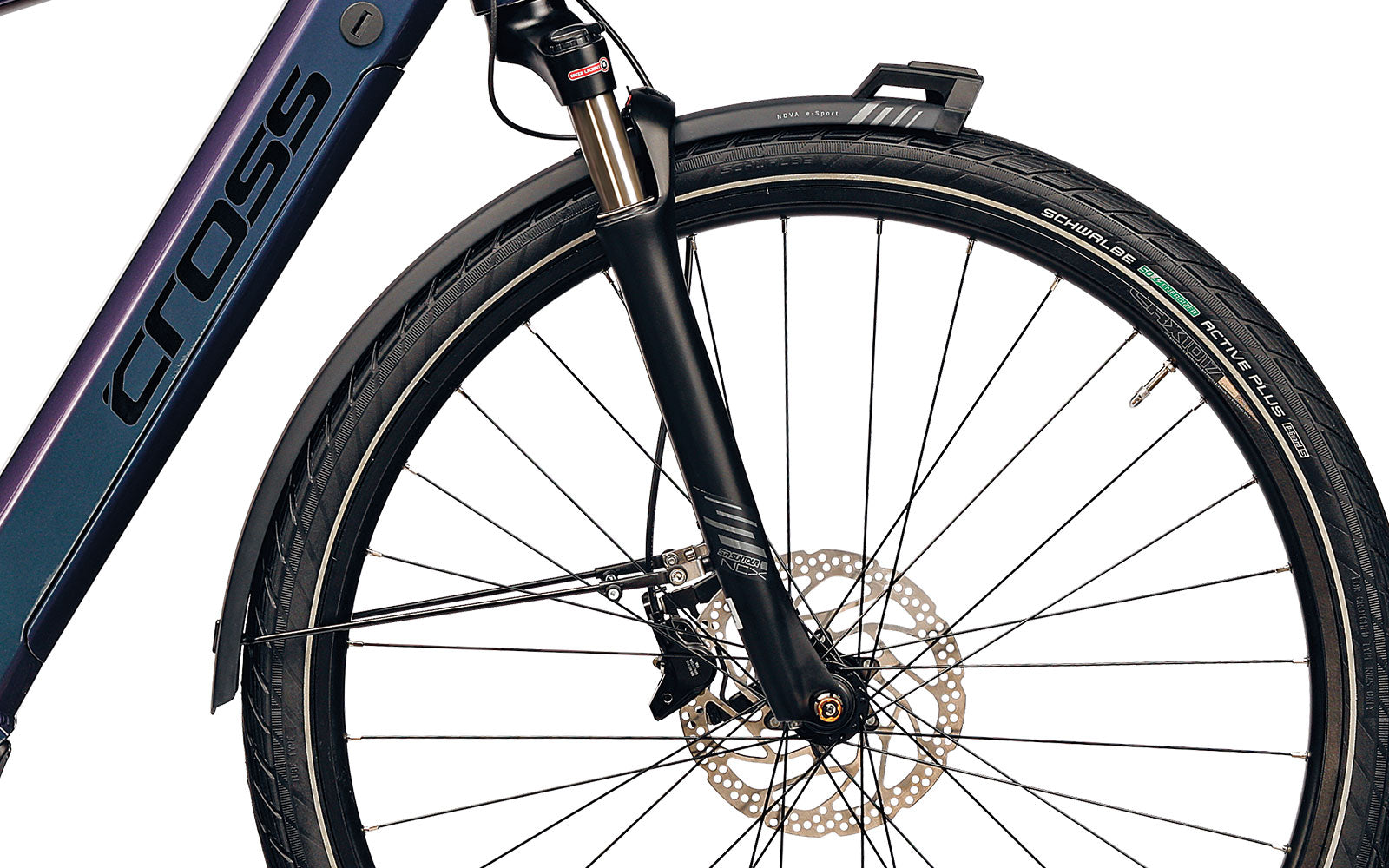

The bike features a high-quality suspension fork that provides additional comfort and improved damping. The SUNTOUR SF17 NCX-D-AIR LO DS 700C TAPERED suspension fork ensures a smooth ride, even on uneven roads and bumpy terrain.

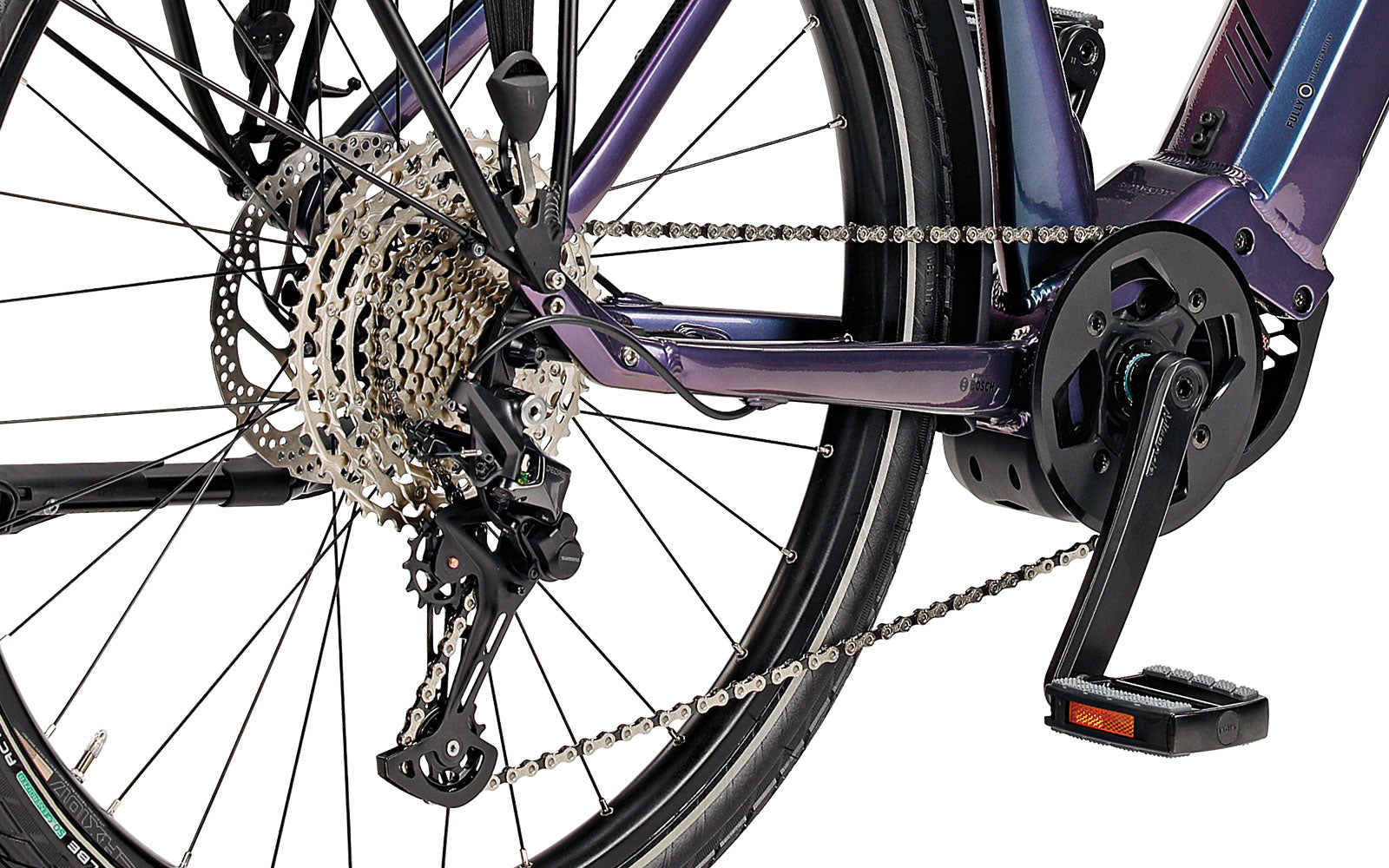

The bike's gear system is powered by the Shimano DEORE RD-M6100 SGS 12-speed drivetrain. This system offers precise and reliable gear shifting performance, allowing you to shift smoothly between the different gears.
The bike's brakes are Shimano DEORE BL-M4100 / BR-MT410 2-piston hydraulic disc brakes with a 180mm rotor. These brakes provide reliable and efficient stopping power, allowing you to stop safely at any time.
Overall, the 28-inch Bosch Trekking Bike NOVA Performance Line CX Gen4 625Wh men's e-bike offers high-quality features that provide a comfortable and powerful cycling experience. Whether you're on-road or off-road, this e-bike will provide you with the support and reliability you need to enjoy your ride.
This bike is delivered 98% fully assembled. Only the handlebars and pedals need to be attached. Final assembly, ready for use, must be performed by a qualified professional.
Size recommendation
Frame size 52 cm | Height 165-175 cm |
Frame size 56 cm | Height 175-185 cm |
Frame size 60 cm | Height 185-195 cm |
GEOMETRY
![]() ![]() |
SPECIFICATIONS
Motor | BOSCH PERFORMANCE LINE CX GEN 4, 250W, 36V, 75 Nm (85 Nm after software update) |
Battery | Bosch PowerTube Horizontal 625 Wh, 36V, 16.7 Ah, frame-integrated |
On-board computer | Bosch Kiox display central unit BUI330 |

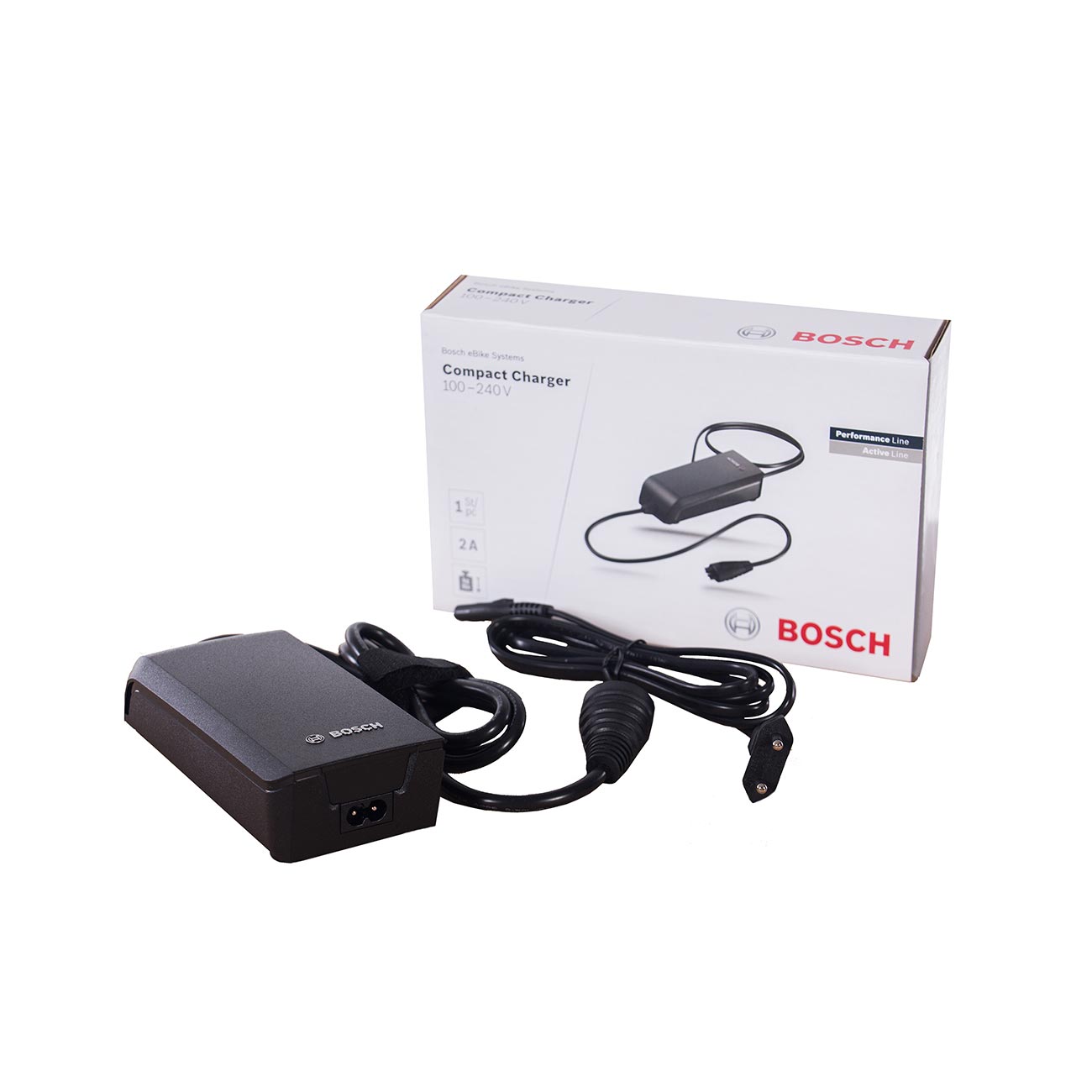

charger | Bosch Compact Charger 2A, (100-240V), EU power cable |
Frame material | Aluminum, internal cable routing, 700C |
Fork | SUNTOUR SF17 NCX-D-AIR LO DS 700C TAPERED * |
tax rate | Ahead, semi-integrated 1 1/8" |
crank | MIRANDA 170mm, 36 teeth |
Pedals | MARWI SP-828 |
Chain | KMC e12s |
cassette | SHIMANO DEORE CS-M6100-12 sprocket 12-speed |
rear derailleur | SHIMANO DEORE RD-M6100 SGS 12-speed |
gearshift lever | SHIMANO DEORE SL-M6100 RAPIDFIRE PLUS 12-speed |
brake lever | SHIMANO DEORE BL - M4100 / BR - MT410 2-piston hydraulic disc brakes - set |
Brake VR | SHIMANO DEORE BL-M4100 / BR-MT410 2-piston hydraulic disc brake rotor 180mm |
Brake rear | SHIMANO DEORE BL-M4100 / BR-MT410 2-piston hydraulic disc brake rotor 180mm |
Rims | Hollow chamber, 32 holes, ETRTO 622x21 |
Front hub | SHIMANO DEORE HB-MT410B 32H 32H 100MM 15MM, quick release, centerlock |
Hub rear | SHIMANO DEORE FH-MT401BZB 32H 135MM QR, quick release, centerlock |
Tires | SCHWALBE ENERGIZER ACTIVE PLUS 50x622 BLACK/REFLEX |
saddle | SELLE ROYAL ESSENZA MODERATE MAN |
handlebar grips | HERRMANS CLIK DD37BL/BR - 123/123 |
stem | HUMPERT ERGOTEC INTEGRA-BK 31.8, Ext 110 mm, 10° |
handlebar | HUMPERT LADY TOWN 31.8, 620MM, BS 30, RISE 16, |
seat post | PROMAX MX27 * 35 MM |
mudguards | SKS BONFIRE EDGE ALLUMINIUM C 56 28" |
Luggage rack | RACKTIME 2 LEGS 00812-DW/ SPRING |
Front light | SKS BONFIRE FRONT 3583 |
rear light | XELTEC DC 3485 / REAR REFL CARRIER HERRMANS BR-12 |
stand | URSUS WAVE 18 MM REAR |
Weight | 26.4 KG |
ADDITIONAL WEIGHT | 130 KG |
